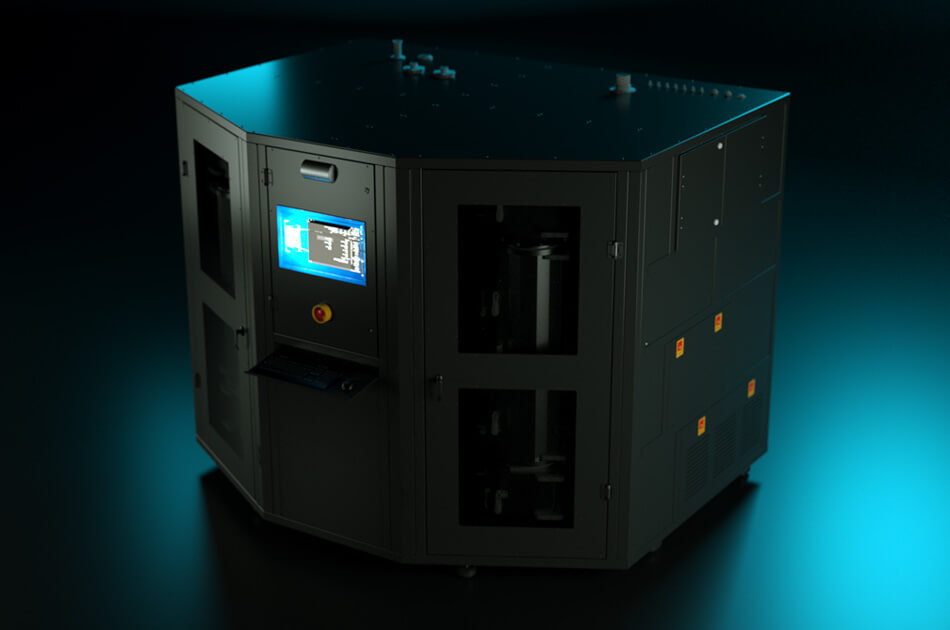

THE EMPERION

DUAL CHAMBER SPEED

The ArmorLube Emperion is an advanced dual chamber deposition system that applies hard coatings to substrates with unprecedented speed and thickness. Emperion’s dual chamber allows for near continuous operation for greater efficiency.

This means that any coating project you send our way can be completed extremely quickly, or you can upgrade your current hard coating machine in an instant with the Emperion. If your metal coating machine can’t get the job done in a timely manner, you may want to consider switching to a machine that can quickly produce high-quality results.

Are you curious to learn more about the Emperion? Our team is ready to answer any and all questions you may have. Feel free to reach out to us, and we’ll address any comments, questions, or concerns! Contact us today for more information about all our coating equipment

FEATURE OVERVIEW

Fast Deposition Rates
Quick Change
Remote Support
Multiple Coating Recipes
Low Profile

MACHINE OPTIONS

Dual Chamber Option with 10″ and 12″ Versions
Inner Armor World Remote Support and Monitoring
Pre-loaded Recipes
Custom designed research and development tool

specs

cost efficient pecvd coating solution

DIMENSIONS:

Length:
Clearance limit 194″ (4929mm)

Width:
Clearance limit 168″ (4255mm)

Height:
Clearance limit 96″ (2439mm)

Footprint:
Actual Machine 110″ (2794mm) X 96″ (2439mm) x 86″ (2185mm)

KEY MACHINE SPECS:

Deposition Rate:
Up to 0.5µm per minute

Max Chamber Size:
10″ Process Zone 10″ (254mm) x 36″ (914.4mm) • 12″ Process Zone 12″ (304.8mm) x 40″ (1016mm)

Power Requirements:
208V 100A 3 Phase 5 Wire with Ground (37.5 kVA) Chassis Ground Bar Required

Coating Types:
PECVD, Nitriding etc.

Dimensions

Length:

Clearance limit 194″ (4929mm)

Width:

Clearance limit 168″ (4255mm)

Height:

Clearance limit 196″ (2439mm)

Footprint:

Actual machine 110″ (2794mm) x 96″ (2439mm) x 86″ (2185mm)

Key Machine Specs

Deposition Rate:

Up to 0.5µm per minute

Max Chamber
Size:

10″ Process Zone 10″ (254mm) x 36″ (914.4mm) • 12″ Process Zone 12″ (304.8mm) x 40″ (1016mm)

Power Requirements:

208V 100A 3 Phase 5 Wire with Ground (37.5 kVA) Chassis Ground Bar Required

Coating Typess:

PECVD, Nitriding etc.
